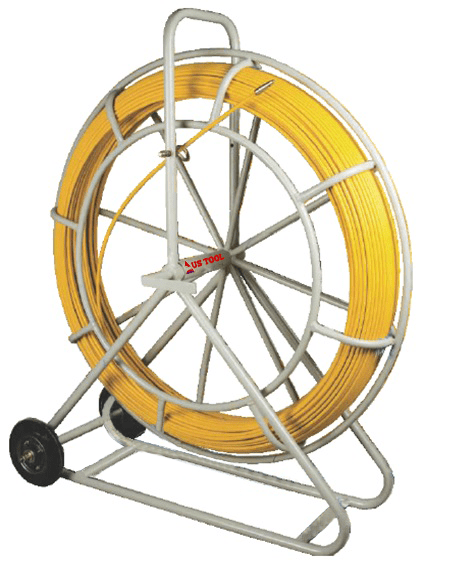

US Tool Duct Rodder
Description
US Tool Duct Rodder is fiber glass rod covered with high density engineered plastic. Having high tensile strength. Duct Rodder can cater to large types of cable installations.
Features :
- High Tensile strength and flexibility
- Anti UV capability
- Customised lengths available
- Light weight, durable, resistance to acid, alkali, aging, resistance & Corrosion resistance
- Good temperature adaptability. It’s usability will not be affected by temperature
- Outer layer are made of high density polyethylene engineering plastic.
Specifications :
| Model | UST-DR300-4.5 | UST-DR300-9.0 |
| Diameter x Length | 4.5mm * 300m | 9.0mm * 300m |
| Length x Width x Height | 620 * 210 * 740mm | 900 * 450 * 1000mm |
| Weight | 12kg(V. M. 20Kg.) | 25kg |
| Minimum Bending Radius | 340mm | |
| Fracture Tensile | 35KN | |
| Temperature Range | -40°C~+80°C | |
| Line Density | 285g/m | |
| Length Range | Can be customized according to customer requirements | |
| External Protection | ABS 749 | |
| Rod Core Material | Epoxy fiberglass | |
| Fiberglass duct rodder frame | 2.0mm Thick steel pipe silver gray (according to the customer requirement) | |
| Drawing Head | Brass | |
| Brake Function | Yes | |
Length of Rod :
100m | 125m | 150m| 175m | 200m | 225m | 250m | 275m | 300m
Standard Accessories :
- Rodder Connect
- Rodder Head
