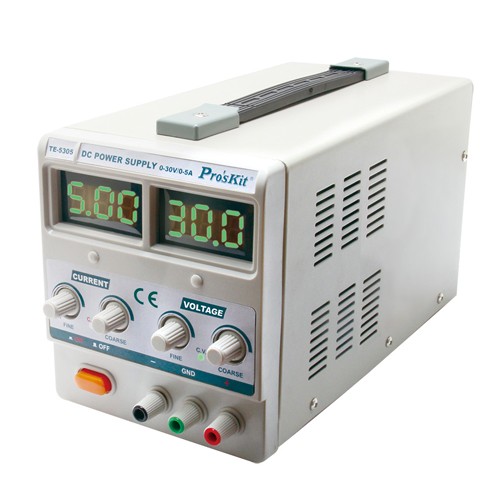

Proskit TE-5305B, DC Power Supply
Description
Proskit TE-5305B, DC Power Supply
Features:
- Unique protective design.
- High-quality SMD process.
- Two levels of control for current & voltage.
- Automatic temperature & radiation system control.
- Durable and convenient.
- Applicable for school, production line, laboratory, and repair center.
Specifications:
ower | 150W |
Display | 3 digits green LED ×2set |
Display error of voltage | ±0.2%+2 digits |
Display error of current | ±1.0%+2 digits |
Constant voltage | |
Output voltage | 0~30V |
Line regulation | ≤ 0.01%+3mV |
Load regulation | ≤ 0.01%+5mV |
Ripple voltage | ≤ 1.0mV(rms) |
Constant current | |
Output current | 0~5A |
Line regulation | ≤ 0.2%+3mA |
Load regulation | ≤ 0.2%+3mA |
Ripple current | 3.0mA(rms) |
Others | |
Input voltage | AC220V ±10%, 50/60 HZ |
Weight(kg) | 5.3kg |
Dimension | 280x136x160mm |
