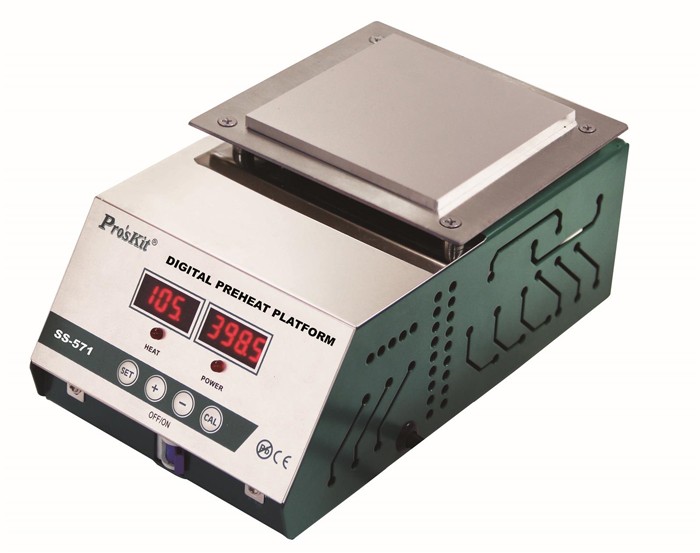

Proskit SS-571B, Digital Preheat Platform
Description
Proskit SS-571B, Digital Preheat Platform
Features:
PID controlled
PID is controlled with Temperature compensation, temperature auto-calibrating, and accurate control.
Aluminum Alloy Platform
The platform is made of aluminum alloy, with high density, and good thermal conductivity.
Infrared Heater
Equipped with infrared heaters with Ceramic insulated tube for fast, efficient, even heating across the surface of the plated and long service life.
Dual Digital Display
Dual digital display of setting and working temperature ensures reliable temperature control and adjustment.
Specifications:
Model No. | SS-571B |
Power Consumption | 300W |
Temperature Range | Room temp. 400℃ |
Temperature accuracy | ±5℃ |
Temperature stability | ±5℃ |
Control system | PID Control |
Temperature compensation setting | -200~400℃ |
Platform size | 100×100×15 (mm) |
Platform material | Aluminum Alloy |
Voltage | 220V~240V 50/60Hz |
Standard plug | B type ![]() |
Dimension (LxWxH) | 280×145×115 (mm) |
