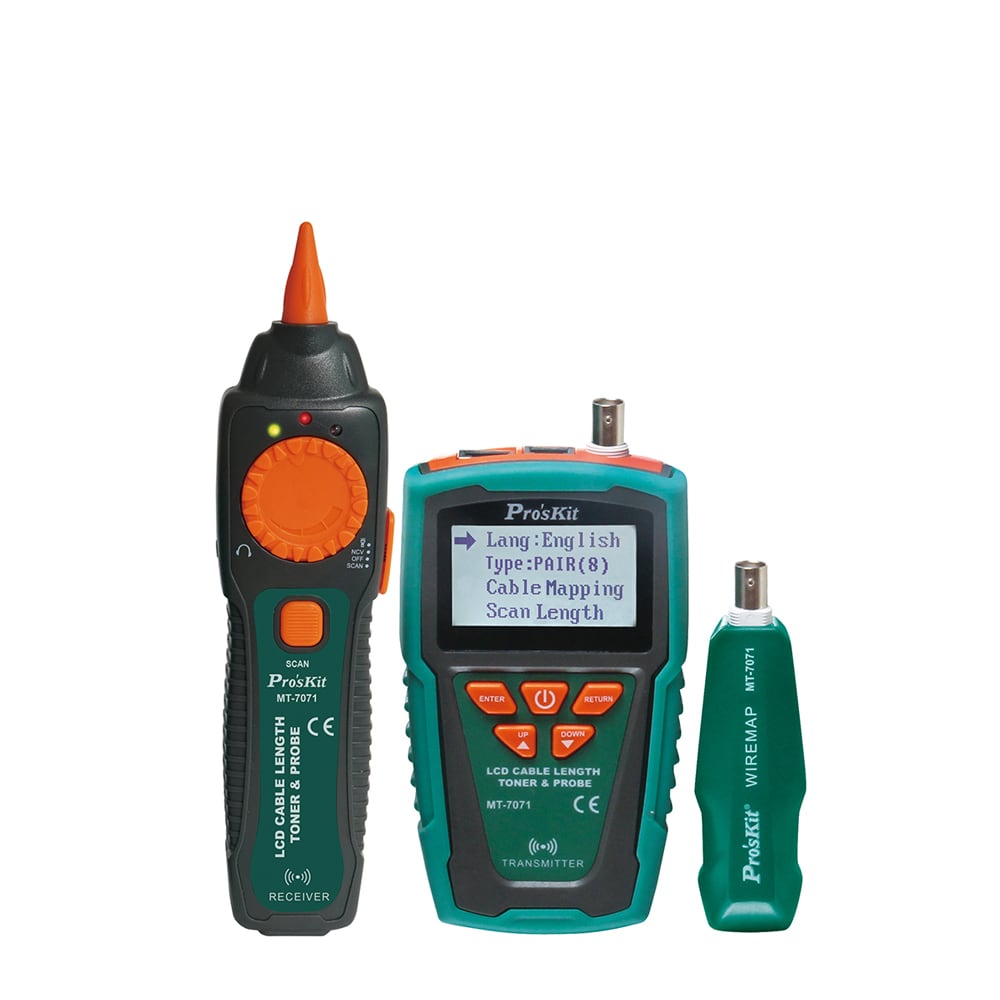

Proskit MT-7071, LCD Cable Length Toner & Probe Kit

Description

Features:

  • 1-7 Calibration Parameters Setting
  • Max Support 8 Remote Units
  • 90~1000V NCV Detection
  • Current Test
  • Current Protection <5mA
  • Voltage Protection AC60V or DC48V
  • Router Test
  • Low Battery Display
  • Auto Power Off
  • Live Telecommunication Equipment Test

Cable Length Measurement up to 1200M

  • Measuring cable length to open up to 1200M. Calibration accuracy: ±3%
  • Length measurement in feet, yards, or meters
  • Cable length measurements without remote attached

Calibration Parameters

  • Can determine actual Calibration parameters with the known length of cable for cable length test
  • Allows setting 1-7 Calibration parameters

Wire Tracing up to 3KM

  • The tone and probe kit let you easily track wire directly in connection with live telecommunication equipment and router

Cable Mapping & status Indication

  • Display the result of the pin to pin cable mapping
  • Display cable status and troubleshoot wiring for continuity, shorts, opens, and crossover.
  • Max support to 8 remote units

Non-Contact Voltage detection

  • Tests voltage from 90 ~ 1000V, special design to make sure the power is off before testing for circuit protection

MT-7071 Toner specifications:

  • Cable types tested- RJ45 Lan cable Cat 5、5e、6、(UTP/STP)、 RJ11/12 Telephone cable Cat 3 (2/4/6 pin)、Coaxial cable & normal solid/Stranded wire by alligator clips patch cord.
  • Cable test modes- 2 note tones for location, wire mapping, open length tested
  • Measurement technology- Cable capacitance method
  • Max. distance to open for test-  1,200 m (4,000 ft/1,300 yd), approx
  • Min. distance to open for test-  2 meters (6.8 ft/ 2.2 yd)
  • Typical accuracy of length test- 2~10 m (6.8~33 ft/2.2~11yd) for reference 10~610 m (33-2000 ft/ 11-666 yd.): ±5.0% 610~1,200 m (2000~4000ft/666~1300 yd.) for reference, Default measuring Cat.5e cable.
  • Calibration accuracy of length test- 10~610 m (33~2,000 ft/11~666 yd) ±3.0%, standard cable:10~50m(33~164 ft/11~55 yd), Default measuring Cat.5e cable.
  • Resolution & unit of length test- 0.1 m / ft / yd, Rate:1~3 sec./time
  • Calibrating parameters memory- 1~7 sets, allowing rewrite by new calibrating parameters.
  • Max. distance of transmit- ≧3 km (580/1160 Hz) & 610 m (2,000 ft/666 yd)
  • Min. distance of cable map- Twisted pair:1m (3 ft/1yd), normal wire:1.25m (4ft/1.35yd)
  • Cable map & shielded indication- LCD 1~8 & G
  • Battery type- DC 9V(NEDA 1604/6F22)X1pc(Not included)
  • Dimension (L×W×D)-  138×80×35 mm

MT-7071 Receiver specification:

  • Signal status indication-  580/1160 Hz
  • NCV indication & LED illumination-  1 LED (AC90~1000V) & 1 LED
  • Dimension (L×W×D)-  203×50×32 mm

MT-7071 Remote unit specifications:

  • Remote unit-  1 pc, max. support to 8 pcs
  • Compatible connectors-  RJ45(8 pins), RJ11/12(6 pins), BNC connectors
  • Remote unit dimension(LxWxD)-  90×32×30mm
  • Individual packing- Color box
