Proskit CP-393, Pro-Crimper Modular Tool (160mm)
Description

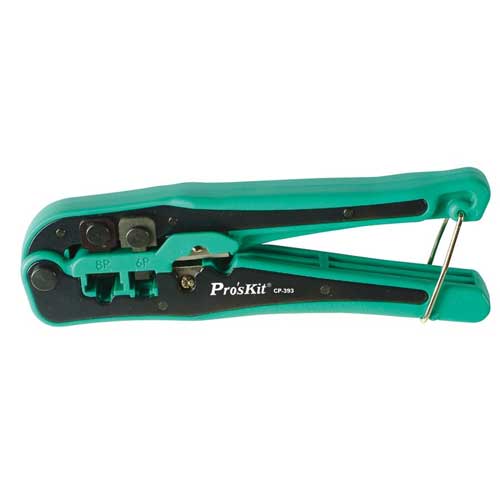

Proskit CP-393, Pro-Crimper Modular Tool (160mm)
Features:
- Cutting modular cable: Place the single-bladed side of the tool’s cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally.
- Stripping modular cable (Flat Cable):
- 2a. Insert 4P/6P cable into the two-bladed side of the tool’s stripper until it touches the stop guide.
- 2b. Insert 8P cable into the two-bladed side of the tool’s stripper and let it extend a little past the lower cut blade.
- Squeeze handles until it stops cable must be kept perpendicular and then pull from the tool.
- Stripping Round Cable Insert the cable into the round stripping hole, turn the crimper in counter clockwise direction and cable in clockwise at the same time.
- Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end.
- Place modular plug with cable into the tool’s holder. Be sure the striped wire is between the tab and gold contacts. Squeeze handles until it stops.
- 4p holder is located on the back side of the tool.
Specification:
Model No. | Material | Application | Replacement blade | OAL.(mm) | Individualpacking |
---|---|---|---|---|---|
CP-393 | ABS+carbon steel | 8P8C/RJ45, 6P2C/6P4C/6P6C RJ11 modular plugs, RJ-22 4P2C/4P4C handset modular plugs | – | 160 | Blister card |
