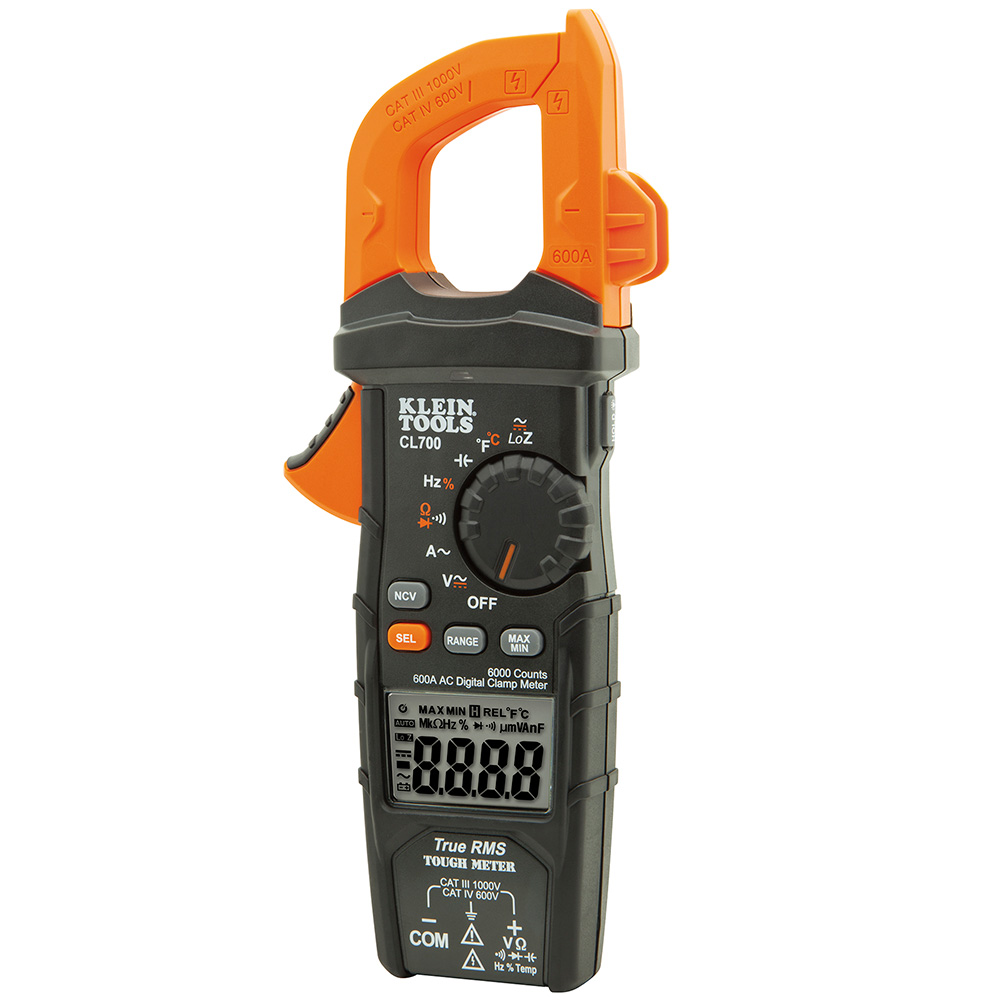

Klein Tools CL700, Digital Clamp Meter AC Auto-Ranging LoZ
Description
Klein Tools CL700, Digital Clamp Meter AC Auto-Ranging LoZ
Features:
- Automatically ranging true mean squared (TRMS) technology for increased accuracy
- Clamp measures AC and thermocouple probe measures temperature
- Test leads measure AC/DC voltage, resistance, continuity, frequency, and capacitance, and tests diodes
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Built to withstand a 6.6-foot (2 m) drop
- Low battery indicator and easily accessible battery compartment
- Includes a carrying pouch, test leads, thermocouple with adapter, and batteries
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office, and light-industrial locations
- Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
- Operating altitude to 6562-Foot (2000 m)
Specifications:
- Application: Measures AC Current
- Special Features: Features Low Battery Indicator
- Batteries:2 x AAA
- Jaw Size:1.38” (34.9 mm)
- Drop Protection:6.6 ft (2 m)
- Display:6000 Count LCD
- Functions: Clamp measures AC and thermocouple probe measures temperature. Test leads measure AC/DC voltage, resistance, continuity, frequency, and capacitance and tests diodes
- Voltage:1000V AC; 1000V DC
- Frequency:1Hz – 500 KHz
- Current:600A
- Capacitance:6000µF
- Ohms (Resistance):60MO
- Temperature Range:-14° – 1000°F (-26° – 538°C)
- Ingress Protection: IP40
- Standard: CAT IV 600V; CE Certified
- Included: Carrying Case, Test Leads, Thermocouple with Adapter, and Batteries
- Overall Length:9.09” (231 mm)
- Overall Height:1.55” (39.3 mm)
- Overall Width:3.81” (96.9 mm)
- Weight:0.74 lb (330.0 g)
