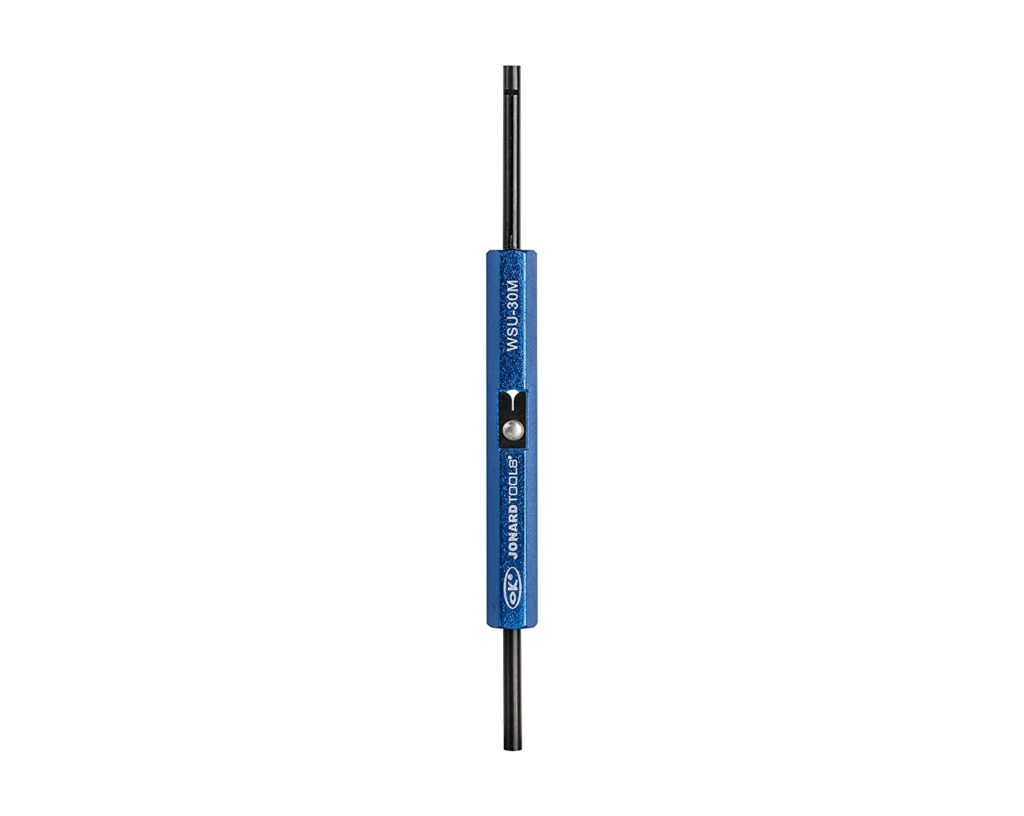

Jonard WSU-30M Wrap/Strip/Unwrapping Tool, 30 AWG
Description:
Designed to wrap, strip, and/or unwrap 30 AWG (0.25 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:
- For use on 0.025″ (0.63 mm) square terminals on 0.100″ (2.54 mm) center to center of the pins
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool
- Modified wrap provides 1.5 to 2 turns of insulation when wire wrapping
- Plastic handle for reduced weight and comfortable to carry
Specifications
Wrap Type | Modified |
---|---|
Wire Gauge | 30 AWG (0.25 mm) |
Maximum Insulation Diameter | 0.021″ (0.53 mm) |
Terminal Hole Diameter | 0.036″ (0.91 mm) |
Terminal Hole Depth | 1.50″ (38.1 mm) |
Outside Diameter | 0.125″ (3.2 mm) |
Wrap Post Size | 0.025″ (0.63 mm) |
Dimensions | 4.5 in x 0.36 in x 0.34 in (11.44 cm x 0.9 cm x 0.86 cm) |
Weight | 0.03 lb (11.804 g) |
UPC # | 811490011335 |
