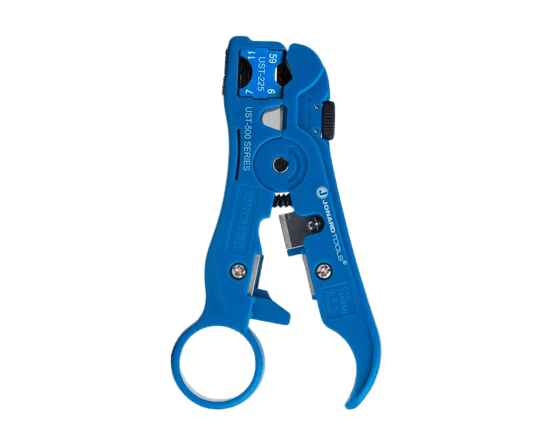

Jonard Tools UST-525 Universal Cable Stripping Tool with Cable Stop for COAX, Network, and Telephone Cables

Description:

The Jonard Tools UST-525 cable stripping tool is designed to strip COAX, Network Cables, and Telephone Cables for quick and easy termination.

Features:

This universal stripping tool features the following:

  • Included blade cartridge (UST-225) provides a 2-level strip on RG59, RG6, RG7, and RG11 COAX Cables for F, BNC, and RCA connector termination
  • High carbon steel blades last over 5,000 strips on each side
  • Cable stop on the cartridge ensures precise stripping without need to make adjustments
  • Cartridge is reversible for ambidextrous use
  • Adjustable stripping hole is used to strip CAT3/4/5E/6/6A PVC and Plenum network cables
  • Cutter is included to cut all types of cables
  • Separate stripping slot included for stripping Flat Cable & 4P/6P style cable
  • Hook and loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use
  • Stripping action removes 1/4″ of jacket and 5/16″ of shield and dielectric, which exposes the center conductor

Cable Type

Cable Type: RG59, RG6, RG7, RG11 with Cable Stop

Specifications

Cable Type

COAX, Network, Flat Telephone Cable

Cable Size

RG-59/6/7/11 COAX, CAT3/4/5E/6/6A Network, Up to 1 cm wide Flat Cable

Dimensions4.92 in X 2.79 in X 0.94 in (12.48 cm X 7.07 cm X 2.38 cm)
Weight0.15 lb (66.284 g)
UPC #811490016071
