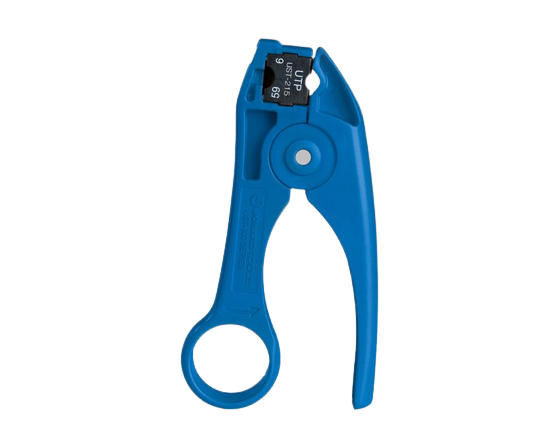

Jonard Tools UST-150 Cable Stripping Tool for RG59, RG6 Cables and CAT/TP Twisted Pair Cables
Description:
The Jonard Tools UST-150 cable stripping tool is designed to strip RG59, RG6, N48, RG6 Tri & Quad Shield coaxial cables and unshielded twisted pair jackets for quick and easy termination. This stripping tool features the following:
- Included cartridge (UST-215) provides a 2-level strip for F, BNC, and RCA Coaxial cable termination and the other side of the cartridge removes jackets off various (CAT, CAT5, CAT5e, CAT6) unshielded twisted pair cables
- High carbon steel blades last over 5,000 strips
- Cable stop on one side of the cartridge ensures precise stripping without need to make adjustments
- Cartridge is reversible for ambidextrous use
- Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
- Stripping action removes 1/4″ of jacket and 5/16″ of shield and dielectric, which exposes the center conductor
Cable Type
Model: RG59 and RG6 with CAT/TP
Specifications
Cable Type | COAX |
---|---|
Cable Size | RG59/6/N48, UTP |
Handle Color | Blue |
Product Main Color | Blue |
Dimensions | 4.97 in X 2.62 in X 1.09 in (12.62 cm X 6.64 cm X 2.76 cm) |
Weight | 0.11 lb (48.124 g) |
UPC # | 811490013698 |
