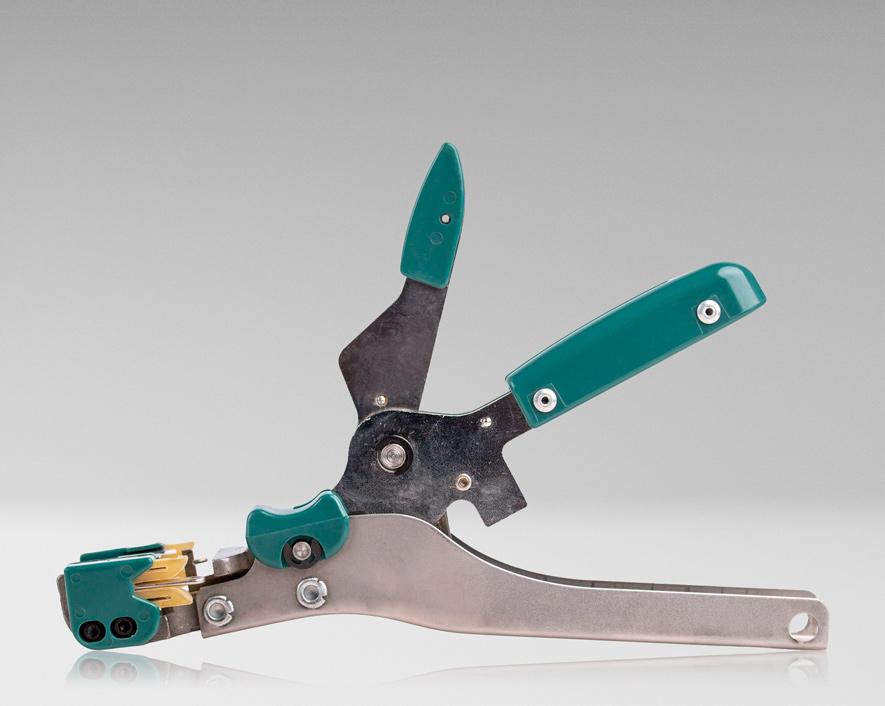

Jonard PIC-G Picabond Crimping Tool

Description:

This VS-3 style hand tool is designed to crimp various AMP Picabond connectors onto 19 – 28 AWG wires. This crimper also features the following:

  • Moveable anvil and two fixed dies crimp the connector perfectly every time
  • Rubber wire supports hold wire in place while crimping
  • Built-in wire cutter locates the connector on the anvil and cuts excess wire during crimping
  • Unique moving handle pushes connectors into the crimping dies, ensuring highly uniform connections with every crimp
  • Fixed handle provides additional support during crimping
  • Compatible with AMP Picabond Connectors with the following stripe colors: Orange, Green, Purple, Green/Amber, Purple/Amber, Red, and Yellow
Specifications
Connector Type

AMP Picabond Connectors (Striped Connectors)

Compatible Stripe Colors

Orange, Green, Purple, Green/Amber, Purple/Amber, Red, & Yellow

Wire Range

28 AWG – 19 AWG

Tool Dimensions

7.75″ x 1.8″ x 2.6″ (19.7 cm x 4.6 cm x 6.6 cm)

Dimensions w/ Case

10.5″ x 7.5″ x 2.5″ (26.67 cm x 19.05 cm x 6.35 cm)

Dimensions10.5 in x 7.5 in x 2.5 in (26.67 cm x 19.05 cm x 6.35 cm)
Weight2.06 lb (935.24 g)
UPC #810053350652
