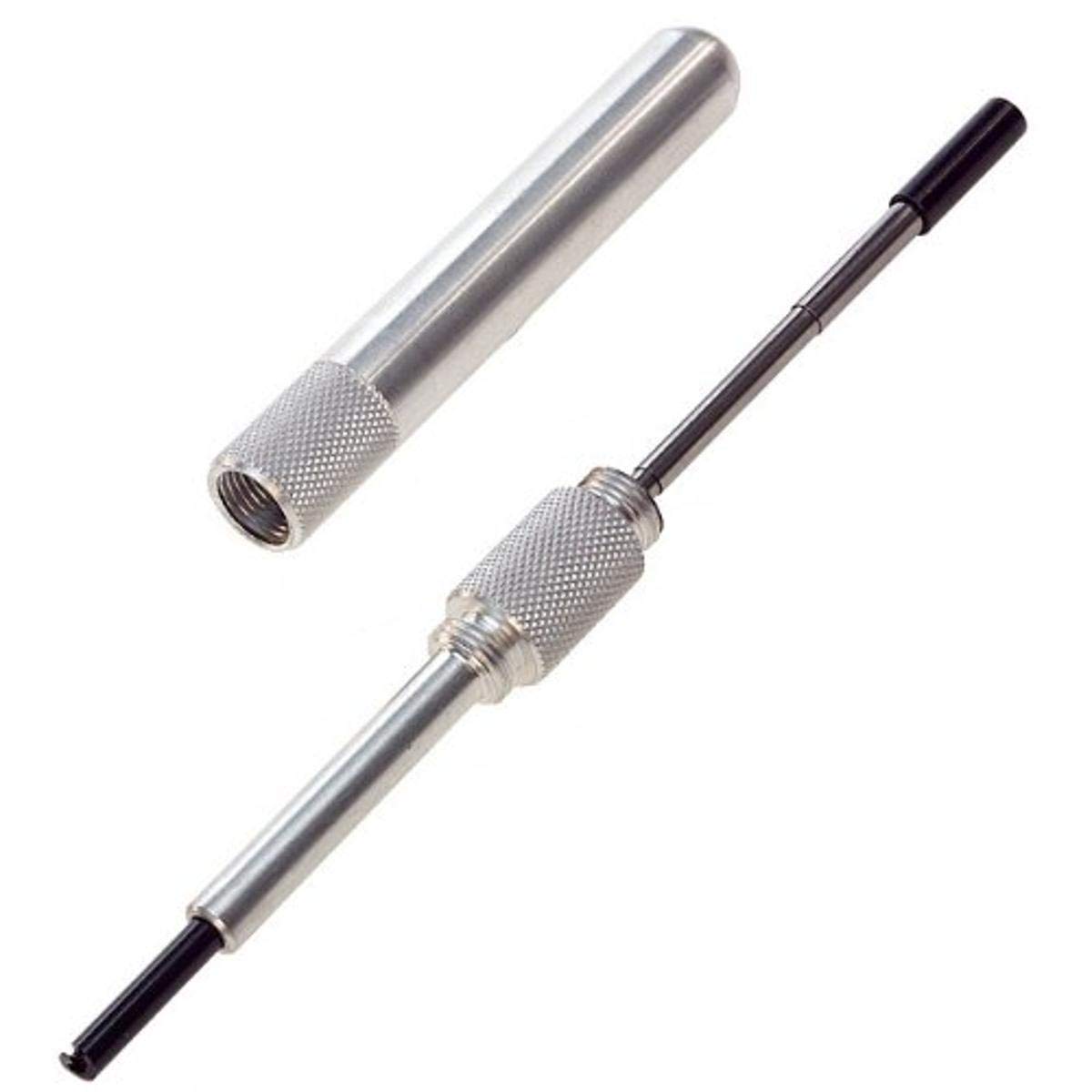

Jonard HW-UW-2829M Hand Wire Wrapping and Unwrapping Tool, 28-29 AWG
Description:
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 28-29 AWG (0.32 mm 0.29 mm diameter) wire. This hand wrap tool also features the following:
- For use on 0.025″ (0.63 mm) square terminals whose center-to-center of the pins are 0.100″ (2.54 mm)
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
Specification:
Specifications
Wrap Type | Modified |
---|---|
Wrap Wire Gauge | 28-29 AWG (0.32-0.29 mm) |
Maximum Insulation Diameter | 0.036″ (0.91 mm) |
Wrap Terminal Hole Diameter | 0.040″ (1.02 mm) |
Wrap Terminal Hole Depth | 0.75″ (19.05 mm) |
Wrap Outside Diameter | 0.156″ (3.96 mm) |
Wrap Post Size | 0.025″ (0.63 mm) |
Unwrap Wire Gauge | 24-32 AWG (0.5-0.20 mm) |
Unwrap Terminal Hole Diameter | 0.038″ (0.96 mm) |
Unwrap Terminal Hole Depth | 1″ (25.40 mm) |
Unwrap Outside Diameter | 0.093″ (2.36 mm) |
Handle Type | Aluminum |
Dimensions | 7 in x 0.5 in x 0.5 in (17.78 cm x 1.27 cm x 1.27 cm) |
Weight | 0.07 lb (32.234 g) |
UPC # | 811490013605 |
