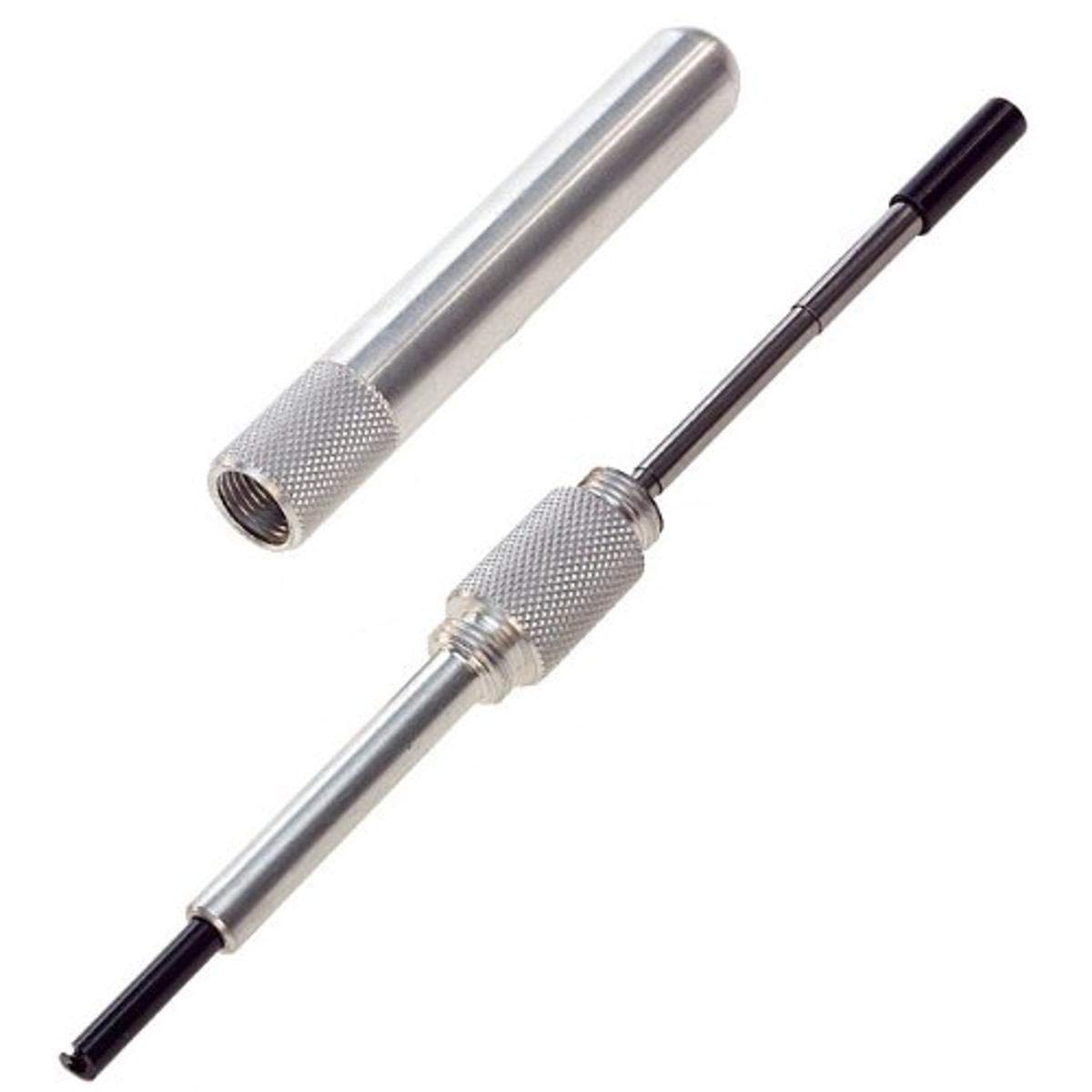

Jonard HW-UW-18-19 Hand Wire Wrapping and Unwrapping Tool, 18-19 AWG, 1/4" OD, 1" Hole Depth
Description:
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 18-19 AWG (1.0 mm – 0.91 mm diameter) wire. This hand wrap tool also features the following:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
Specifications
| Wrap Type | Regular |
|---|---|
| Wrap Wire Gauge | 18-19 AWG (1.00-0.91 mm) |
| Wrap Terminal Hole Diameter | 0.075″ (1.90 mm) |
| Wrap Terminal Hole Depth | 1″ (25.40 mm) |
| Wrap Outside Diameter | 0.250″ (6.35 mm) |
| Wrap Post Size | 0.045″ (1.14 mm) |
| Unwrap Wire Gauge | 18-19 AWG (1.0-0.91 mm) |
| Unwrap Terminal Hole Diameter | 0.075″ (1.90 mm) |
| Unwrap Terminal Hole Depth | 1″ (25.40 mm) |
| Unwrap Outside Diameter | 0.187″ (4.74 mm) |
| Handle Type | Aluminum |
| Dimensions | 7 in x 0.5 in x 0.5 in (17.78 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.09 lb (40.406 g) |
| UPC # | 811490014176 |
