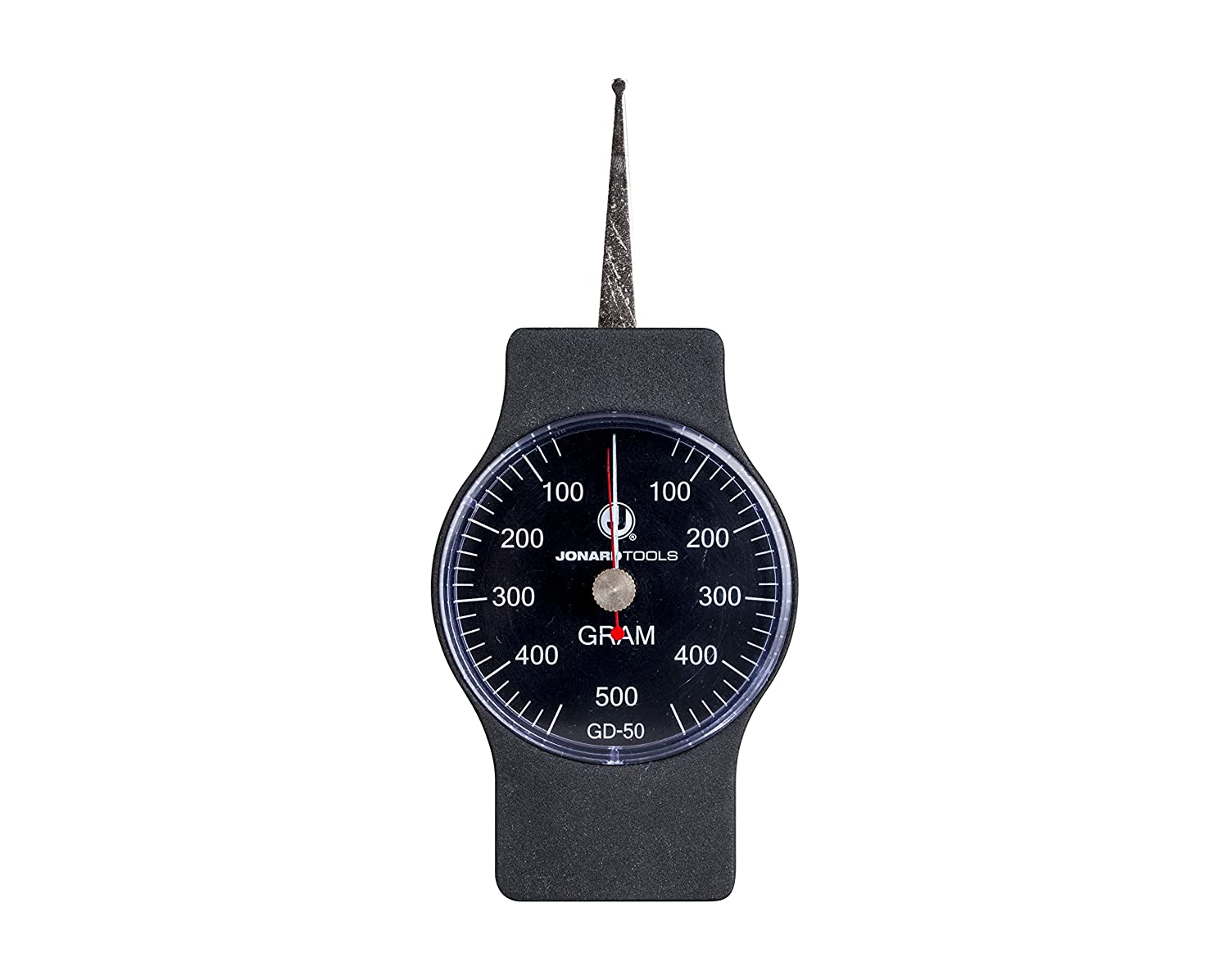

Jonard GD-50 Round Tip Large Force Gauge, 60-500 grams, Dial Display, 20 grams Graduation, +/- 0.01 Accuracy
The Jonard Tools Dial Force Gauges (also referred to as Dynamometer Gauges or Tension Gauges) are all ergonomically designed and have become the industry standard for measuring force. This dynamometer force gauge features the following:
- Measurements are very simple to make, just place point of gauge arm perpendicular to the force being measured
- Reading can be taken in both directions – clockwise and counterclockwise
- Measuring springs are made of hard tempered annealed beryllium copper for durable use
- All gauges are equipped with a maximum reading pointer and the gauge has a rounded tip with a dial diameter of 2 1/2 inches
- Gauges offer extreme precision and high durability
- Accuracy: 20 grams, graduation: 20 grams, range: 60-500 grams, maximum capacity: 500 grams
Specifications
| Lever Tip Style | Round |
|---|---|
| Tip Diameter | 0.140″ (3.55 mm) |
| Tip Thickness | 0.0744″ (1.89 mm) |
| Dial Diameter | 2 1/2″ (6.35 cm) |
| Accuracy | +- 20 g |
| Graduation | 20.00 g |
| Max Capacity | 500 g |
| Range | 60-500 g |
| Dimensions | 6.25 in x 2.75 in x 1.38 in (15.88 cm x 6.99 cm x 3.49 cm) |
| Weight | 0.6 lb (272.4 g) |
| UPC # | 811490010079 |
