Fiber Optic Visual Fault Locator

Description:

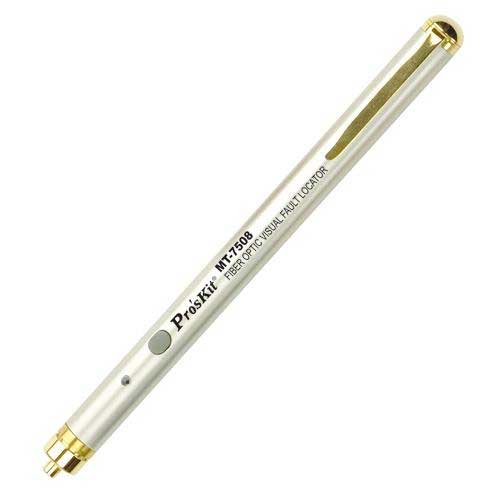

Proskit MT-7508, Fiber Optic Visual Fault Locator

Features:

  • Simple, versatile, and user-friendly design
  • Rugged, compact, and splashproof copper housing
  • Three operation modes available: “CW” (Continuous wave output), “Pulse” and “Off” modes
  • Continuous wave output mode (CW) for steady fault illumination
  • Pulse mode helps to locate faults under high ambient light conditions
  • Support 2.5mm connectors (for PC/FC/SC/ST)
  • The button switch permits easy one-handed operation
  • Handy, pocket pen design
  • 2 AAA-size alkaline batteries provide 50 hours of continuous operation

Specifications:

 Materials
 Body Copper
 Laser Class Class 3A laser diode
 Nominal Wavelength 650nm ± 10nm
 Operating Temp. 0 ~ 40C
 Storage Temp. 0 ~ 50C
 Dimensions Length Length 160 ± 2mm, Diameter 13.5mm
 Batteries 2 x AAA (Not Included)
 Package
 Individual Packing Color Box with Black EVA Inner Box
