3 1/2 Digital LCR Multimeter

Description

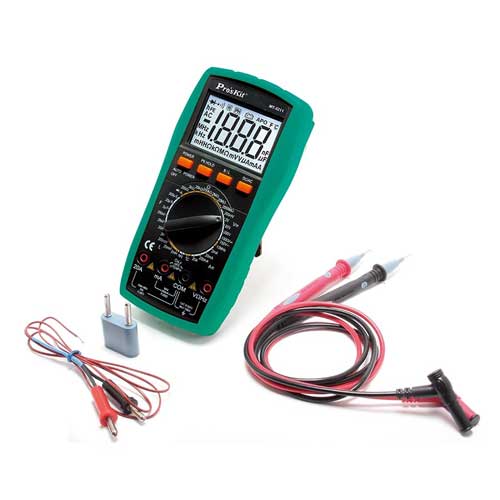

Proskit MT-5211, 3 1/2 Digital LCR Multimeter

Description:

Fully featured with LCR & DMM Multimeter

MT-5211 is a Fully featured multimeter with an LCR meter. Ideal for a wide variety of electrical and electronic testing applications. Comply with CAT IV 600V.

Features:

  • 3 1/2 digits 1999 counts.
  • Dual slope A/D conversion.
  • Large backlight LCD.
  • Extra functions: continuity with beeper, diode test, data hold, auto power-off, low battery indication, overload indication, backlight, transistor tester.
  • Ideal for a wide variety of electrical and electronic testing applications.

specifications:

DC Voltage (V)200mV/2V/20V/200V±(0.5%+3d),1000V±(1.0%+5d)
AC Voltage (V)200mV±(1.2%+3d),2V/20V/200V±(0.8%+5d),750V±(1.2%+5d)
DC Current (A)2mA/20mA±(0.8%+3d),200mA±(1.2%+4d),20A±(2.0%+5d)
AC Current (A)2mA/20mA±(1.0%+5d),200mA±(2.0%+5d),20A±(3.0%+10d)
Resistance (Ω)200±(0.8%+5d),2K/20K/200K/2MΩ±(0.8%+3d),
Capacitance (uF)20MΩ±(1.0%+15d),2000MΩ±(5.0%(reading-10)+20d)
Inductance (L)20nF/200nF/2uF±(2.5%+20d),20uF/200uF±(5.0%+5d)
Temperature (T)2mH/20mH/200mH/2H/20H±(2.5%+20d)
(-20~1000˚C)<400˚C±(1.0%+4d) ,≧400˚C±(1.5%+15d)
Frequency (Hz)2k/20k/200k/2000K/10M Hz±(1.0%+10d)
Power source9V 6F22 battery (Not included)
Size(D×W×H) mm189×97.5×35mm
AccessoriesTest lead, thermocouple , test socket
Individual PackingColor box
