AC/DC Digital Clamp Multimeter

Description

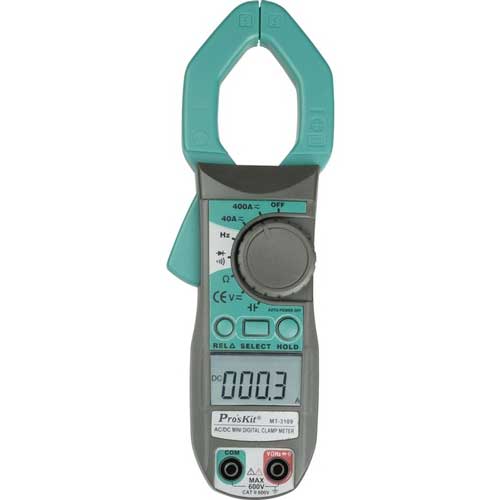

Proskit MT-3109, AC/DC Digital Clamp Multimeter

Description:

AC/DC current, Frequency, Capacitance measurement.

Features:

  • 3 3/4 digits 3999 counts.
  • 1.0% best accuracy.
  • Auto range.
  • Overload protection.
  • Extra function: duty cycle, relative reference, data Hold, sleep mode, auto power off, low battery indication.
  • Jaw Opening Size: max. 30mm

Specification:

Digits3 3/4 digits 3999 counts
Accuracy1.0% best accuracy
DCV400m/4V ±(1.0%+3d), 40/400V ±(1.0%+1d),600V ±(1.0%+5d)
ACV4/40/400V ±(1.2%+5d), 600V ±(1.5%+5d)
DCA40A ±(2.5%+5d), 400A ±(2.5%+3d)
ACA40A ±(3.0%+8d), 400A ±(3.0%+5d)
Resistance400Ω ±(1.2%+5d), 4k/40k/400kΩ ±(1.0%+5d),
4MΩ ±(1.2%+5d), 40MΩ ±(1.5%+5d
Frequency10/100/1k/10k/100k/1MHz ±(0.1%+5d),
10MHz (For reference only)
Capacitanc40n/400n/4μ/40μF ±(5.0%+10d), 100μF ±(6.0%+10d)
Extra functionduty cycle, relative reference, data Hold, sleep mode,
auto power off, low battery indication.
Power SourceAAA(1.5V) x 3 pcs (Not included)
Size203 x 68 x 33 mm
AccessoriesTest lead and alligator clips
