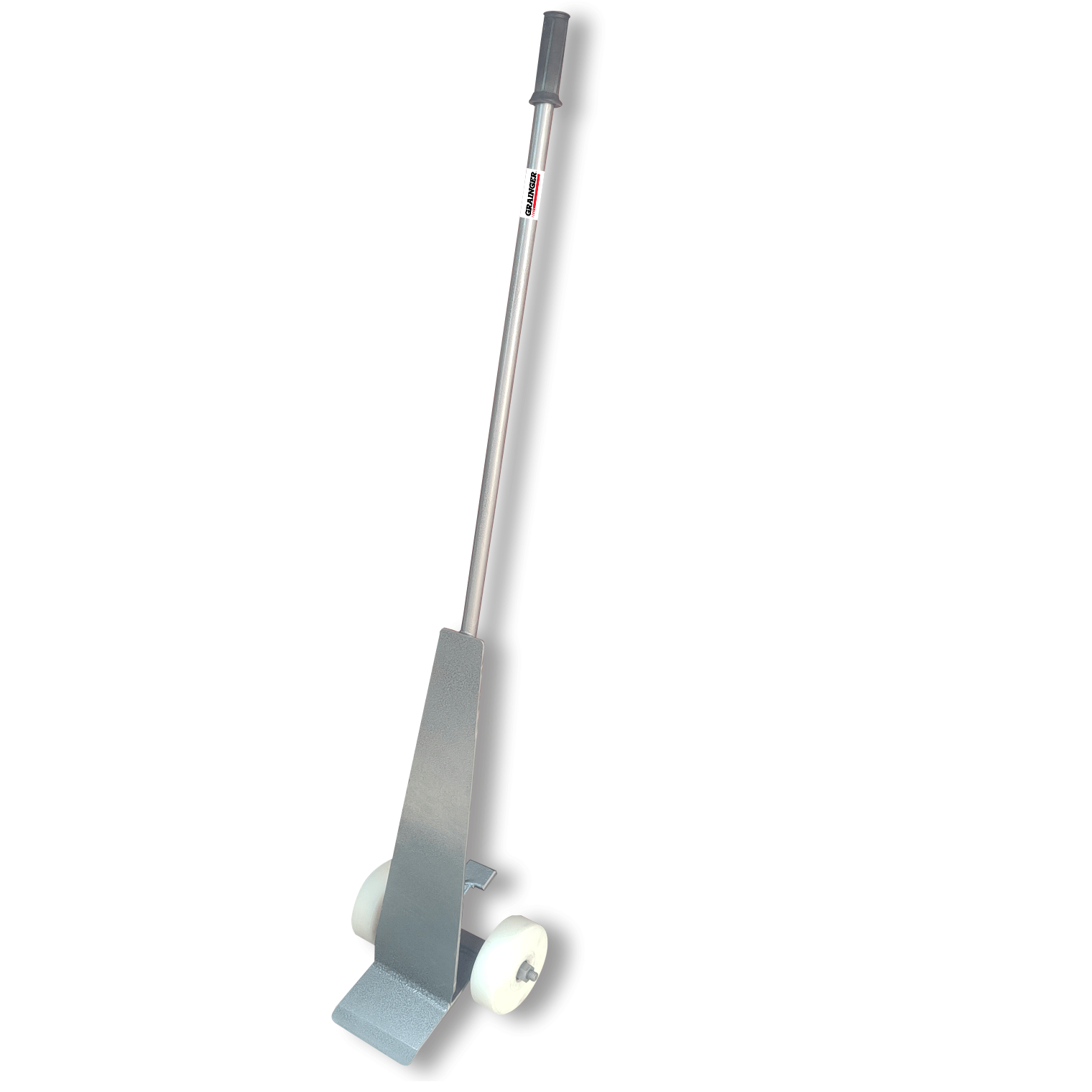

29AK53 Pry Bar Dolly
Descriptions:
- Lever dollies are used to raise one edge or corner on heavy machinery, crates, or pallets so that dollies or other equipment can be placed underneath them. Also known as pry bars or Johnson bars, they are often used in pairs.
- They have a metal nose plate that slides under the equipment to be lifted, and they have a long handle that provides leverage to lift the equipment. They also have wheels and can roll when moving or repositioning the equipment.
- These lever dollies have a steel handle that is welded to their steel nose plate.
- The dollies have a rear foot bar that helps operators push the nose plate underneath heavy loads.
Description | Dimensions |
---|---|
Load Capacity | 5.000lb |
Frame Material | Steel |
Frame Finish | Powder Coated |
Nose Plate Depth | 3-1/2 in |
Nose Plate width | 6 in |
Handle Length | 60 in |
Handle Material | Steel |
Nose Plate Type | straight |
Nose Plate Profile | Beveled |
Nose Plate Material | Steel |
Nose Plate Finish | Powder Coated |
Nose Plate Thickness | 1/2 in (12.7mm) |
Base Plate | 24 in (60.96mm) |
Color | Grey |
Includes Foot Assist | With foot assist |
Foot Assist | 6.69 in (170mm) |
Wheel Diameter | 5.71 in (145mm) |
Wheel Width | 1.77 in (45mm) |
Wheel Bearings | Roller |
Axle Dia. | 5/8 in |
Overall Length | 62 in |
Overall Width | 10-1/2 in |
